29" WHEELS // HARDTAIL // 130MM FRONT

We say Yelli, you say Screamy. The first hardtail to bring the party to wagon wheels is back with a vengeance. Slice and dice singletrack. Rail pump tracks and jump lines. Load it with frame bags and get lost. Keep up with your spandex-clad friends on the climbs and embarrass them on the descents.

Do whatever you want on the Yelli Screamy, just don’t tell it that it’s a short-travel 29er hardtail.

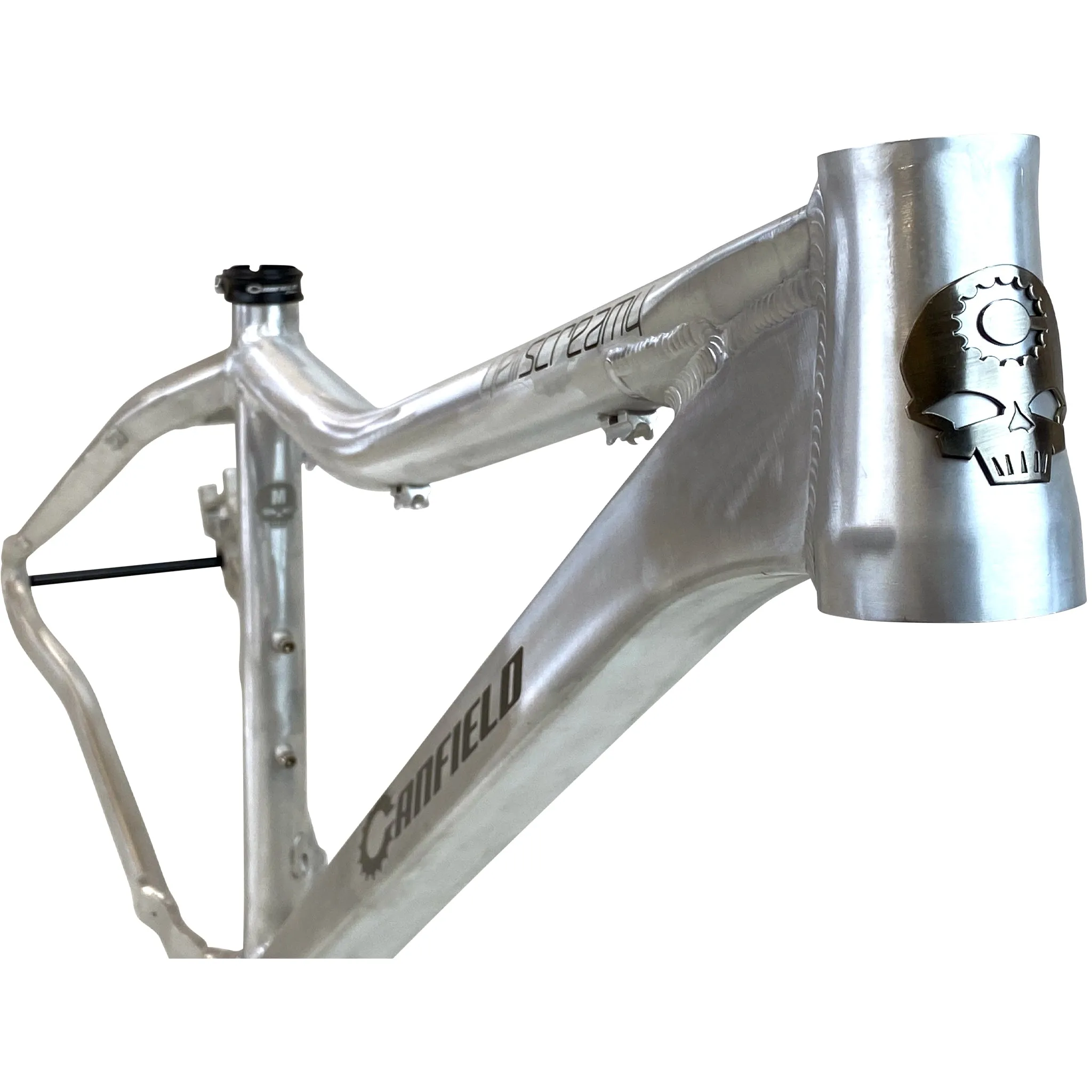

*Photos are for illustration purposes. Final production details subject to change.

FRAME FEATURES

29” Trail/AM Hardtail
6061-series aluminum
Tapered Headtube (44x56)
Recommended fork length: 120mm - 140mm
Stealth dropper routing
ISCG 05 tabs
73mm BSA Threaded BB
30.9mm seat post (34.9/35mm clamp compatible)
Boost Spacing
Rear Tire Clearance: 80mm/3.15 inches between stays (plus tires not recommended on 29-inch wheels due seat-tube clearance)
Brake mount: PM 160mm
Three water-bottle mounts
Includes seat clamp, derailleur hanger, rear axle and hardware

GEO & SIZING

	SMALL	MEDIUM	LARGE	XL
Top Tube Length (Effective)	571	597	624	650
Reach	425	450	475	500
Front Center	736	763	793	820
Stack	630	635	644	649
Standover	677	709	746	769
Wheel Base	1,154	1,181	1,210	1,237
Head Tube Angle*	65.5	65.5	65.5	65.5
Head Tube Length	105	110	120	125
Seat Tube Angle (Effective)	77	77	77	77
Seat Tube Angle (Actual)	76.4	76.4	76.4	76.4
Seat Tube Length	380	420	460	490
Max. Seatpost Insertion	280	320	360	390
Chainstay Length	424	424	424	424
Bottom Bracket Height	316.5	316.5	316.5	316.5
Bottom Bracket Drop	58	58	58	58
Rider Height***	5'2"-5'7"	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"
